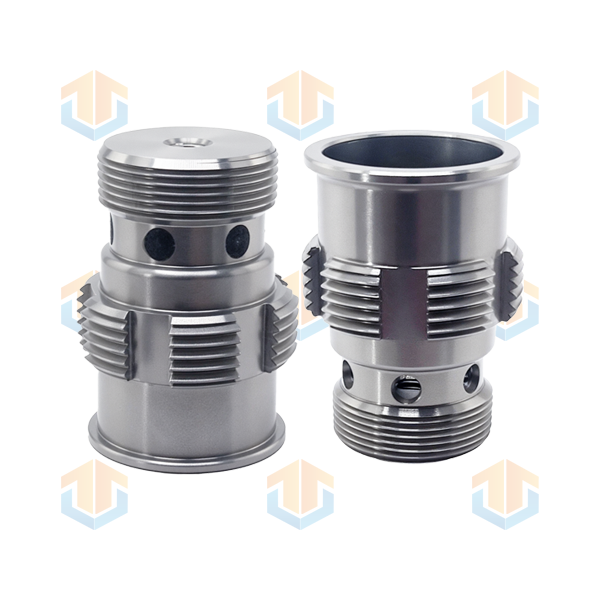

Custom CNC Machined Threaded Sleeves by Hetai: High-Precision Threaded Adapter Solutions
In high-stress mechanical systems, fluid power networks, and heavy-duty structural assemblies, maintaining precise axial alignment and dependable thread engagement is essential. At Hetai, we specialize in manufacturing high-precision Custom CNC Machined Threaded Sleeves (also known as threaded adapters, threaded collars, or threaded insert sleeves), engineered to deliver superior clamping force, high torque load capability, and long-lasting performance under harsh operational conditions.
Utilizing multi-axis CNC turning, precision Swiss lathed operations, and specialized thread-cutting technology, Hetai transforms premium metal alloys into custom threaded components tailored strictly to your CAD models and tolerance specifications.
What is a CNC Machined Threaded Sleeve?
A CNC machined threaded sleeve is a hollow cylindrical component featuring internal threads, external threads, or a combination of both (such as male-to-female adapters or female-to-female joining sleeves).
It performs several critical structural and mechanical functions:
-
Thread Reinforcement & Protection: Protects weaker parent materials (such as aluminum housings, soft alloys, or composites) from thread wear, stripping, and galling under repeated assembly cycles.
-
Precision Extension & Spacing: Functions as a load-bearing spacer or sleeve adapter along rotating shafts, tie rods, or hydraulic lines.
-
Thread Conversion: Bridges mismatched thread standards, pitches, or sizes (e.g., Metric to Imperial/NPT) within a unified system.
-
Heavy-Duty Thread Repair: Acts as a solid threaded sleeve to repair damaged or worn female threads in expensive castings or machinery bodies.
Key Technical Specifications & Customization Capabilities
At Hetai, customization extends across all geometric dimensions, thread forms, material selections, and surface finishes:
| Parameter | Hetai Customization Capabilities |
| Machining Capabilities | 3/4/5-Axis CNC Turning, Swiss Automatic Lathe Machining, Precision Thread Whirling, CNC Milling, Honing |
| Material Options |
Stainless Steel: SUS304, SUS316/316L, SUS410, 17-4PH / SUS630, 2205 Duplex
Carbon & Alloy Steel: 1045, 40Cr, 4140, 42CrMo, SCM435
Brass & Copper Alloys: C36000 Free-Cutting Brass, Phosphor Bronze, Aluminum Bronze
Aluminum Alloys: 6061-T6, 7075-T6
Engineering Plastics: PEEK, POM (Delrin), PTFE
|
| Dimensional Limits |
Inner Diameter (ID): 2 mm to 200 mm
Outer Diameter (OD): 5 mm to 250 mm
Length: 5 mm to 400 mm
|
| Tolerances & Thread Classes |
Machining Tolerance: Up to ±0.005 mm (5 microns)
Thread Fits: Metric 6H/6g, Imperial 2B/2A, 3B/3A
|
| Thread Configurations | Internal / External Threads, Straight Threads (M, UNC, UNF), Tapered Pipe Threads (NPT, BSPT), Trapezoidal / Acme Threads, Left-Hand (Reverse) Threads |
| Special Geometric Features | Integrated flanges, outer diamond/straight knurling, wrench flats (hex or two-flat drive), cross-drilled lubrication holes, internal retention grooves |
| Surface Treatments | Anodizing (Type II/III), Passivation (ASTM A967), Electropolishing, Black Oxide, Zinc Plating, Dacromet, Solid Film Anti-Galling Coatings |
Technical Advantages of Hetai Custom Threaded Sleeves
-
Micron-Level Thread Concentricity: Machining both the inner and outer threads in a single CNC clamping setup guarantees strict pitch-line concentricity (up to ±0.005 mm), preventing cross-threading, binding, and uneven load distribution.
-
Anti-Galling & Corrosion Protection: For stainless steel or high-torque applications, Hetai applies specialized chemical passivation, electropolishing, or dry-film lubricants to eliminate thread galling and seizure during high-speed installation.
-
Superior Tensile & Shear Strength: Machined directly from solid, defect-free bar stock or forged blanks, Hetai threaded sleeves offer vastly superior fatigue life and structural integrity compared to thin-walled stamped or rolled inserts.
-
Custom Drive & Mounting Features: We can incorporate outer hex flats, spanner slots, or knurled surfaces directly onto the sleeve to facilitate tool engagement or press-fit installation.
Primary Application Sectors
Hetai’s custom CNC machined threaded sleeves perform across diverse high-stress industrial environments:
-
Hydraulic & Pneumatic Systems: Hydraulic cylinder port adapters, high-pressure valve bodies, hose fittings, and manifold block sleeves.
-
Automotive & Motorsport: Steering tie-rod sleeves, suspension link adapters, exhaust sensor standoffs, and engine block thread inserts.
-
Heavy Machinery & Construction: Excavator boom pin sleeves, gearbox housing connectors, and structural tension rod sleeves.
-
Oil & Gas / Chemical Processing: Subsea pipe couplings, corrosion-resistant valve sleeves, and instrumentation adapters.
-
Robotics & Industrial Automation: Motion guide extension sleeves, actuator rod couplings, and robotic joint pivots.
Hetai Quality Assurance & Inspection Standards
Quality control is integrated into every stage of production at Hetai to guarantee 100% compliance with your engineering specifications:
-
100% Raw Material Traceability: Material batches are verified via spectrographic chemical analysis and backed by Mill Test Certificates (MTC).
-
Comprehensive Thread Verification: Threads are 100% inspected using precision Go/No-Go plug and ring gauges, optical profile projectors, and pitch micrometers.
-
CMM Geometric Inspection: Coordinate Measuring Machines inspect critical parameters including concentricity, wall thickness uniformity, runout, and overall length.
-
Surface Finish Optimization: Controlled surface finish down to Ra 0.4 µm guarantees smooth thread engagement and tight sealing capability.
Partner with Hetai for Your Custom Machining Needs
Whether you require a low-volume prototype batch for design validation or high-volume production runs with strict JIT delivery schedules, Hetai delivers uncompromised quality, competitive factory-direct pricing, and expert engineering support.
Send us your 2D drawings (PDF) or 3D CAD models (STEP/IGES) today for a quick manufacturability review and competitive quote!
