Precision Axial Alignment & Shaft End Positioning Solutions
In high-precision mechanical assemblies, automated machinery, and power transmission systems, maintaining exact axial alignment at the shaft end is critical to preventing dynamic runout, reducing component wear, and ensuring repeatable positioning. At Hetai, we specialize in manufacturing Custom End Locating Sleeves (also known as end positioning sleeves or end alignment bushings), engineered to provide rigid structural support, tight-tolerance end-of-shaft positioning, and seamless integration into complex mechanical setups.
Combining advanced multi-axis CNC turning, precision Swiss lathe machining, centerless grinding, and tailored surface finishing, Hetai transforms high-grade metals and engineering polymers into custom end locating sleeves built strictly to your CAD models and tolerance specifications.

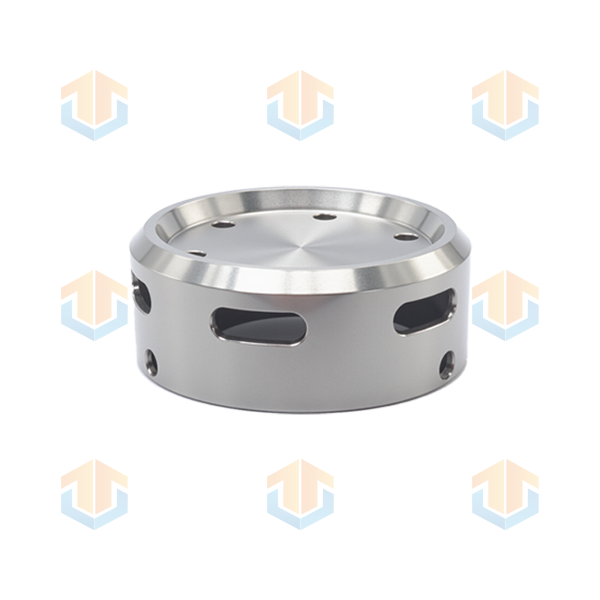

What is a Custom End Locating Sleeve?
A custom end locating sleeve is a specialized hollow cylindrical sleeve mounted at the terminal end of a shaft, spindle, or housing bore.
It serves several vital mechanical functions:
-
Precision End Alignment: Functions as a datum locator at the end of a shaft or housing, ensuring exact axial and radial positioning for mating hubs, bearings, or gears.
-
Axial Stop & Spacing: Acts as a mechanical end-stop or spacer, preventing axial displacement under dynamic thrust loads or thermal expansion.
-
Shaft Protection & Surface Renewal: Protects the underlying shaft end from direct fretting corrosion, mechanical wear, and scoring caused by repeated mounting and dismounting.
-
Tolerance Compensation: Bridges dimensional gaps between mismatched shaft ends and external housing components without requiring costly redesigns of primary shafts.
Technical Specifications & Customization Capabilities
At Hetai, customization extends across all dimensional parameters, geometric features, material selections, and surface treatments:
| Parameter | Hetai Customization Capabilities |
| Machining Capabilities | Precision CNC Turning, 4/5-Axis CNC Milling, Swiss Automatic Lathes, Centerless Grinding, Honing, Lapping |
| Dimensional Limits |
Inner Diameter (ID): 3 mm to 200 mm
Outer Diameter (OD): 6 mm to 250 mm
Length: 5 mm to 300 mm |
| Machining Tolerances |
ID & OD Tolerances: Up to ±0.003 mm (3 microns)
Concentricity & Runout: Up to 0.002 mm |
| Material Options |
Stainless Steel: SUS304, SUS316, SUS420, 17-4PH / SUS630
Alloy & Tool Steel: 4140, 42CrMo, GCr15 / 52100 (Bearing Steel), D2
Brass & Bronze: C36000 Free-Cutting Brass, Phosphor Bronze, Aluminum Bronze
Aluminum Alloys: 6061-T6, 7075-T6
Engineering Plastics: PEEK, POM (Delrin), PTFE, Nylon |
| Geometric Features | End flanges, retaining ring grooves, internal/external keyways, set-screw cross holes, lubrication grooves, lead-in chamfers |
| Hardness Options | Case-hardened or Through-hardened up to HRC 58–62 for high wear resistance |
| Surface Treatments | Passivation (ASTM A967), Hard Anodizing (Type II/III), Black Oxide, Electropolishing, Hard Chrome Plating, DLC (Diamond-Like Carbon) |
Technical Advantages of Hetai Custom End Locating Sleeves
-
Micron-Level Concentricity & Perpendicularity: Machining the bore, outer diameter, and end face in a single clamping setup ensures minimal total indicator reading (TIR), preventing shaft wobble, vibration, and premature bearing failure.
-
Superior Surface Finish: Precision honing and centerless grinding deliver internal and external surface finishes down to Ra 0.2 µm, ensuring smooth press-fit or sliding-fit installation without galling.
-
High Structural & Shear Resistance: Machined directly from solid, defect-free bar stock or forgings, Hetai locating sleeves withstand heavy dynamic shock loads and high axial forces without deforming.
-
Custom Lead-In & Retaining Profiles: Engineered entry chamfers, bullet-nose profiles, or flange stops allow quick, error-free manual or automated robotic assembly.
Primary Application Sectors
Hetai’s custom end locating sleeves are deployed across high-demand industrial sectors requiring repeatable precision:
-
Industrial Automation & Robotics: End-of-arm tooling locators, robotic arm joint stops, and linear actuator end guides.
-
Automotive & Powertrain Systems: Gearbox shaft-end locators, camshaft end sleeves, transmission linkage guides, and steering column stops.
-
Machine Tools & Precision Spindles: Milling/turning spindle end positioning, fixture locator bases, and rotary table indexing sleeves.
-
Hydraulics & Fluid Control: Hydraulic cylinder rod end guides, high-pressure pump end sleeves, and valve spool positioning sleeves.
-
Medical & Precision Instruments: Cleanroom-compatible motion stages, surgical device positioning mounts, and optical assembly sleeves.
Hetai Quality Assurance & Testing Standards
Quality is integrated into every stage of production at Hetai to guarantee 100% compliance with your engineering specifications:
-
100% Material Traceability: Raw materials are verified via spectrographic chemical analysis and backed by Mill Test Certificates (MTC).
-
CMM & Optical Measurement: Coordinate Measuring Machines (CMM), optical comparators, and digital air gauges verify critical inner/outer diameters, length, and perpendicularity.
-
Surface & Microstructure Inspection: Surface roughness testers and Rockwell/Vickers hardness testers confirm exact surface finish (Ra) and core strength requirements.
-
100% Dimensional Sorting: Optical sorting equipment ensures zero-defect delivery for automated assembly lines.
Partner with Hetai for Your Custom Component Projects
Whether you require a low-volume prototype run for design validation or high-volume production schedules with strict JIT delivery, Hetai delivers uncompromised quality, competitive factory-direct pricing, and expert engineering support.
Send us your 2D drawings (PDF) or 3D CAD models (STEP/IGES) today for a quick manufacturability review and competitive quote!
