Custom Square Washer SEMS Screws by Hetai: Integrated Fastening for Maximum Clamping & Anti-Loosening
In high-vibration electrical connections, terminal block wiring, structural sheet metal assemblies, and automotive sub-systems, loose washers can cause assembly line delays, improper torque retention, and catastrophic structural failure. At Hetai, we specialize in manufacturing Custom Square Washer SEMS Screws (integrated captive square washer assembly screws), engineered to deliver superior clamping load distribution, anti-loosening resistance, and streamlined assembly line efficiency.
By permanently captivations high-precision square washers (or square cone/terminal washers) onto threaded screw shanks before thread rolling, Hetai produces an all-in-one pre-assembled fastener tailored precisely to your technical drawings and CAD models.

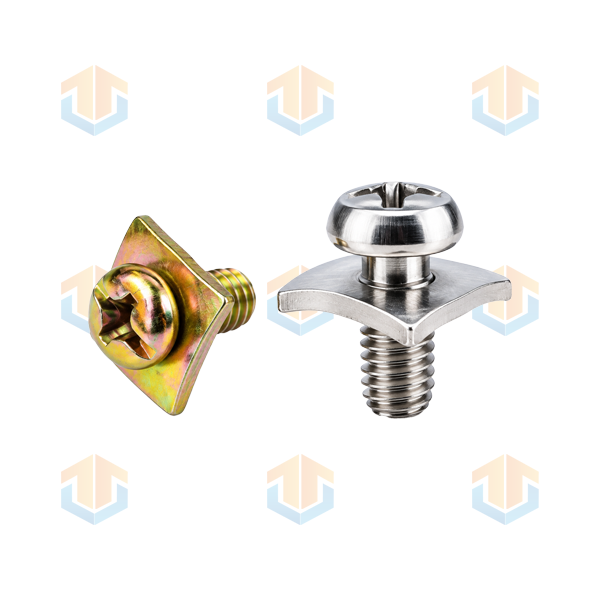

What is a Square Washer SEMS Screw?
A square washer SEMS screw is an integrated fastener assembly consisting of a threaded screw paired with a captive square washer. The inner diameter of the square washer is smaller than the outer diameter of the rolled screw threads, keeping the washer securely held under the screw head while remaining free to spin.
The square washer profile delivers distinct functional advantages over standard round washers:
-
Preventing Wire & Terminal Slip: In electrical terminal connections, the flat edges of the square washer prevent stranded wires or spade terminals from squeezing out during torque application.
-
Anti-Rotation & Large Surface Clamping: The square geometry offers a larger surface contact area to bridge oversized or slotted mounting holes, distributing clamping stress evenly across delicate or soft substrates.
-
Streamlined Assembly Line Workflow: Eliminates manual washer sorting and placement, reducing component handling times and preventing missing washers during high-volume production.
Key Technical Specifications & Customization Capabilities
At Hetai, customization extends across all geometric dimensions, washer styles, material choices, and surface finishes to meet your exact engineering requirements:
| Parameter | Hetai Customization Capabilities |
| Manufacturing Methods | Multi-Station Cold Heading, Automatic Washer Assembly, Precision Thread Rolling, CNC Machining |
| Screw Head Styles | Pan Head, Button Head, Hex Head, Hex Flange Head, Countersunk (Flat) Head, Binder Head |
| Drive Types | Phillips, Slotted, Combination (Phillips/Slotted), Torx (Star), Internal Hex (Allen), Square Drive |
| Square Washer Configurations | Flat Square Washer, Square Cone Washer (Belleville-style spring washer), Serrated/Tooth Square Washer |
| Material Options |
Carbon & Alloy Steel: 1018, 1022, 35#, 45#, 40Cr, 42CrMo
Stainless Steel: SUS304 (A2), SUS316 (A4), SUS410
Brass & Copper: C36000 Free-Cutting Brass, Phosphor Bronze
|
| Strength Property Classes |
Metric Grades: 4.8, 6.8, 8.8, 10.9, 12.9
Imperial Standards: SAE J429 Grade 2, Grade 5, Grade 8
|
| Dimensional Limits |
Thread Size: M2.5 to M16 / #4 to 5/8″
Screw Length: 6 mm to 150 mm
Square Washer Size: Custom width, thickness, and corner radii
|
| Surface Treatments | Zinc Plating (Clear/Yellow/Black), Nickel Plating, Tin Plating (for electrical conductivity), Dacromet, Geomet, Passivation |
Technical Advantages of Hetai Custom Square Washer Screws
-
Enhanced Electrical Contact Integrity: For electrical switchgear, circuit breakers, and terminal blocks, Hetai custom square cone washers maintain constant spring tension under thermal cycling, ensuring low contact resistance and preventing thermal loosening.
-
100% Captive Washer Security: Our automated assembly process guarantees that washers are securely trapped before thread rolling, eliminating assembly line downtime caused by dropped or forgotten washers.
-
Superior Anti-Vibration Performance: Optional spring-tensioned or serrated square washers maintain clamping force even under severe dynamic vibration, heavy shock loads, and thermal expansion.
-
Preventing Surface Marring: The captive washer rotates independently of the screw head, preventing rotational friction from scoring, scratching, or damaging soft parent materials (such as copper busbars, aluminum housings, or plastics).
Primary Application Sectors
Hetai’s custom square washer SEMS screws are widely deployed across industries requiring secure, high-integrity electrical and mechanical joints:
-
Electrical Equipment & Switchgear: Circuit breakers, terminal blocks, electrical panel boards, transformers, and industrial relay stations.
-
Automotive & EV Electronics: Electric vehicle battery junction boxes, wiring harness mounts, ground connections, and charging infrastructure.
-
Consumer Appliances & HVAC: Control panel wiring, compressor housings, heating element mounts, and motor assemblies.
-
Industrial Automation & Telecommunications: Telecom cabinet grounding, power supply module mounts, and robotic control box wiring.
-
Building Construction & Sheet Metal: HVAC ducting clamps, metal framing connectors, and junction box covers.
Hetai Quality Assurance & Testing Standards
Quality control is integrated into every stage of production at Hetai to guarantee 100% reliability and zero-defect delivery:
-
Material Verification: Chemical composition and tensile properties are verified via spectrographic analysis and backed by Mill Test Certificates (MTC).
-
Automated Captivity & Dimensional Inspection: Optical sorters verify washer presence, thread pitch, head height, and washer alignment on 100% of high-volume runs.
-
Mechanical & Electrical Testing: Tensile strength, proof load, hardness (Rockwell/Vickers), and electrical contact resistance testing confirm compliance with engineering specs.
-
Salt Spray & Plating Verification: Salt spray chambers (ASTM B117) and coating thickness gauges ensure long-term corrosion resistance.
Partner with Hetai for Your Fastener Requirements
Whether you need prototype quantities for new electrical equipment designs or high-volume production runs with strict JIT delivery schedules, Hetai delivers uncompromised quality, competitive factory-direct pricing, and expert engineering support.
Send us your technical drawings (PDF/STEP) or project specifications today for a prompt manufacturability review and competitive quote!
