Custom Cylindrical Mounting Rings for Lighting & Sensor Assemblies
HETAI Manufacturing specializes in the production of Custom Cylindrical Mounting Rings for Lighting & Sensor Assemblies, precision-manufactured metal components designed to securely mount, position, and retain lighting modules, sensors, electronic components, and equipment housings.

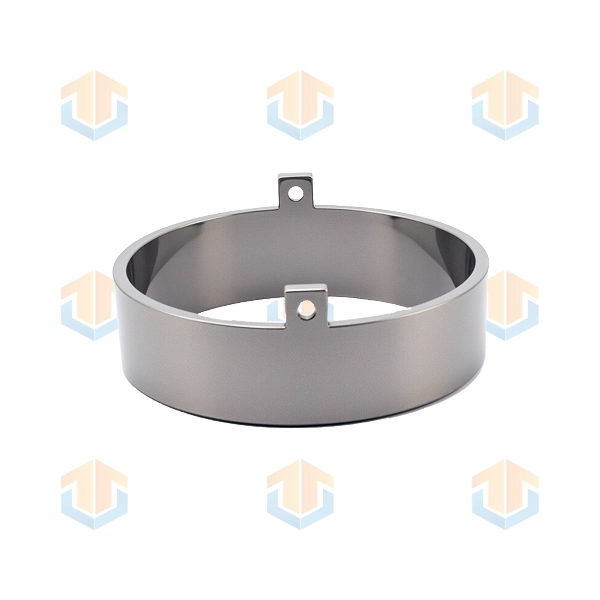

Featuring a cylindrical ring body with integrated mounting tabs and holes, these custom mounting rings provide a simple and reliable method for securing components within an assembly. HETAI can manufacture the ring diameter, height, wall thickness, mounting tabs, hole positions, and other dimensions according to customer drawings or samples.
What is it?
A Custom Cylindrical Mounting Ring is a cylindrical metal mounting component used to support, position, or secure a component inside or around a larger assembly.
The ring typically consists of:
- A cylindrical or circular ring body
- Integrated mounting tabs
- Precision mounting holes
- Customized wall thickness and height
- Optional steps, grooves, slots, or other features
The mounting tabs provide convenient attachment points for screws or other fastening hardware.
What is it used for?
These mounting rings are designed to provide secure and repeatable installation of components in mechanical and electronic assemblies.
They can be used to:
- Position lighting modules
- Secure sensors
- Mount electronic components
- Fix cylindrical housings
- Retain internal components
- Provide structural support
- Maintain component alignment
The ring can be customized to match the external or internal dimensions of the component being installed.
How does it work?
The cylindrical body surrounds or supports the target component, while the integrated mounting tabs provide fixed attachment points.
During assembly, screws or other fasteners pass through the holes in the mounting tabs and connect the ring to the equipment housing, mounting plate, frame, or other structural component.
Depending on the design, the ring can provide:
Positioning → Alignment → Retention → Structural Support
The inner diameter, outer diameter, height, and mounting-hole position can be precisely controlled to ensure proper fit and repeatable assembly.
What materials are available?
HETAI can manufacture custom mounting rings from a variety of metals according to the application’s mechanical, environmental, and appearance requirements.
Common materials include:
- Stainless Steel: 304, 316, 316L
- Carbon Steel
- Alloy Steel
- Aluminum: 6061, 6063, 7075
- Brass
- Copper
- Other customer-specified metals
Stainless steel is suitable for applications requiring corrosion resistance, while aluminum is an excellent choice where low weight and good machinability are important.
What is the size range for it?
Because these are custom mounting components, dimensions are not limited to a fixed standard range.
Typical customizable dimensions include:
- Ring outside diameter: approximately 10–360 mm
- Ring inside diameter: approximately 5–350 mm
- Height: approximately 5–300 mm
- Wall thickness: approximately 2–290 mm
- Mounting tab thickness: customized
- Mounting hole diameter: approximately 1–20 mm
Larger or smaller dimensions can also be evaluated according to the customer’s drawing and manufacturing requirements.
What tolerances can be achieved?
The achievable tolerance depends on the material, dimensions, manufacturing process, and required geometry.
Typical CNC-machined dimensions can generally achieve:
- General dimensional tolerance: ±0.05 mm
- Precision dimensions: ±0.02 mm
- Critical dimensions: ±0.01 mm or tighter, subject to design and process feasibility
For mounting rings requiring accurate assembly, HETAI can control critical features such as:
- Inside diameter
- Outside diameter
- Ring height
- Wall thickness
- Mounting-hole diameter
- Hole-to-hole spacing
- Concentricity
- Flatness
- Perpendicularity
Specific tolerances can be manufactured according to customer drawings.
What surface treatments are available?
HETAI provides various surface treatments to improve corrosion resistance, durability, appearance, or surface performance.
Available options include:
- Anodizing
- Hard anodizing
- Zinc plating
- Nickel plating
- Chrome plating
- Black oxide
- Passivation
- Electrophoretic coating
- Powder coating
- Polishing
- Brushing
- Other customer-specified finishes
For lighting and sensor assemblies where appearance is important, brushed, polished, anodized, or powder-coated finishes can be selected according to the product design.
What’s the main process for manufacturing it?
For this cylindrical Mounting Rings, HETAI’s primary manufacturing processes are CNC turning, milling and drilling.
What are the primary applications of it?
Custom Cylindrical Mounting Rings are suitable for a wide range of lighting, electronic, industrial, and mechanical applications.
Typical applications include:
- LED lighting assemblies
- Industrial lighting
- Automotive lighting
- Sensors
- Camera modules
- Electronic equipment
- Control equipment
- Electrical enclosures
- Equipment housings
- Automation equipment
- Robotics
- Industrial machinery
- Measurement instruments
They are particularly useful when a standard mounting bracket or retaining ring cannot meet the required dimensions or installation configuration.
What is the Minimum Order Quantity (MOQ) for it?
For the cylindrical Mounting Rings, HETAI’s minimum order quantity (MOQ) is 500 pcs.For the best cost-performance ratio, the minimum order quantity should ideally exceed 3,000 pcs.
What is the shortest production lead time for it?
For a relatively simple design using readily available materials and standard machining processes, sample production can typically be completed in approximately 7–10 working days after drawing confirmation.
For mass production, the lead time depends on:
- Material availability
- Product complexity
- Production quantity
- Tooling requirements
- Surface treatment
- Inspection requirements
For urgent projects, HETAI can evaluate expedited production based on the specific project requirements.
Custom Mounting Rings from HETAI
HETAI Manufacturing provides custom metal components for lighting, sensors, electronics, automation equipment, and industrial machinery.
Whether you need a simple cylindrical mounting ring or a complex ring with integrated tabs, mounting holes, steps, grooves, slots, or other custom features, HETAI can manufacture the component according to your drawings and application requirements.
From material selection and process development to CNC machining, forming, surface treatment, inspection, and delivery, HETAI provides a complete custom manufacturing solution.
Send your drawing, 3D model, or sample to HETAI for a customized quotation and manufacturing evaluation.
