Custom Cross-Hole Threaded Sleeves by Hetai: Multi-Axis Alignment & Secure Mechanical Locking
In complex mechanical assemblies, cross-dowel connections, fluid manifolds, and structural framing systems, standard straight-threaded sleeves often lack the specialized locking or fluid-routing capabilities required. At Hetai, we specialize in manufacturing high-precision Custom Cross-Hole Threaded Sleeves (also known as cross-drilled threaded bushings, barrel nuts, or cross-hole threaded inserts), engineered to deliver exceptional structural rigidity, precise multi-axis positioning, and versatile mechanical integration.
Utilizing multi-axis CNC turning and milling centers, Swiss automatic lathes, and specialized cross-drilling equipment, Hetai transforms high-grade metals and engineering plastics into custom threaded sleeves built strictly to your CAD models and technical specifications.
What is a Cross-Hole Threaded Sleeve?

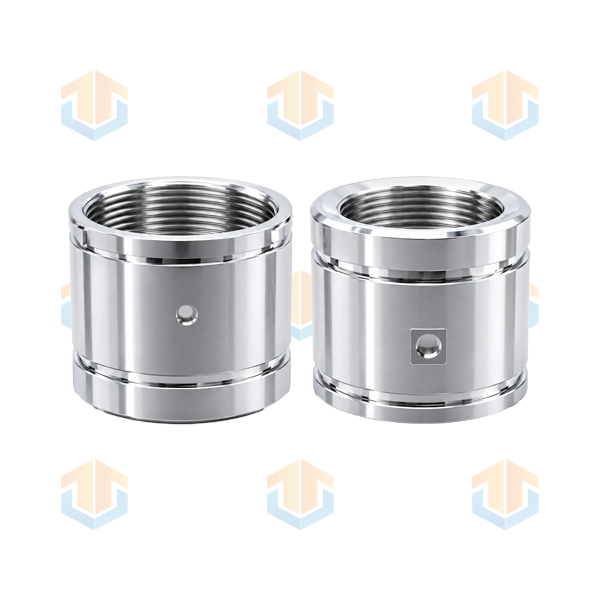

A cross-hole threaded sleeve is a cylindrical sleeve component featuring a primary axial bore (threaded or smooth) intersected by one or more transverse (cross-drilled) holes through its sidewall.
Depending on your engineering design, the cross-holes can be smooth clearance holes, tapped threads, or angled ports to perform key structural functions:
-
Perpendicular Pin & Fastener Locking: Allows a transverse locking bolt, set screw, or dowel pin to pass through the sleeve, locking the inner shaft or mating bolt securely in place.
-
Cross-Dowel Structural Joints: Functions as a heavy-duty barrel nut inside timber, aluminum profiles, or composite structures, allowing a perpendicular bolt to pull joint members tightly together.
-
Fluid & Lubrication Distribution: Serves as an internal fluid or grease port, allowing lubricants, hydraulic fluid, or air to pass across the sleeve walls into internal shaft grooves.
-
Retention & Indexing: Provides keying slots or detent pin locations to prevent rotational or axial drift in dynamic mechanical linkages.
Technical Specifications & Customization Capabilities
At Hetai, customization extends across all geometric features, hole orientations, material options, and surface treatments:
| Parameter | Hetai Customization Capabilities |
| Machining Capabilities | 4/5-Axis CNC Milling, CNC Turning, Swiss Lathe Machining, Cross-Drilling & Tapping, Deburring |
| Material Options |
Stainless Steel: SUS304, SUS316, SUS410, 17-4PH / SUS630
Carbon & Alloy Steel: 1045, 40Cr, 4140, 42CrMo, SCM435
Brass & Bronze: C36000 Free-Cutting Brass, Aluminum Bronze, Phosphor Bronze
Aluminum Alloys: 6061-T6, 7075-T6
Plastics: POM (Delrin), PEEK, PTFE
|
| Dimensional Limits |
Outer Diameter (OD): 4 mm to 200 mm
Inner Diameter (ID): 2 mm to 150 mm
Length: 6 mm to 300 mm
|
| Machining Tolerances |
Bore & Hole Tolerances: Up to ±0.005 mm (5 microns)
Cross-Hole Angular & Perpendicularity Alignment: Up to 0.01 mm
|
| Thread Standards & Classes | Metric (Coarse/Fine, 6H/6g), Imperial (UNC/UNF, 2B/3B, 2A/3A), NPT/BSPT Pipe Threads, Acme Threads |
| Cross-Hole Variations | Single or multiple radial holes, 90°/180° cross-drilled setups, threaded cross-holes, countersunk or counterbored ports |
| Surface Treatments | Passivation (ASTM A967), Anodizing (Type II/III), Black Oxide, Zinc Plating, Electropolishing, Chemical Conversion Coating |
Technical Advantages of Hetai Custom Cross-Hole Sleeves
-
Precision Hole-to-Bore Perpendicularity: Machining both the main axial bore and the transverse cross-holes in a single multi-axis CNC clamping setup ensures exact 90-degree intersection and angular alignment, eliminating pin binding during assembly.
-
Burr-Free Internal Intersections: Drilling through threaded or smooth internal bores naturally creates sharp internal burrs. Hetai utilizes specialized thermal, electrochemical, and mechanical deburring techniques to ensure clean, burr-free internal intersections that won’t scratch mating shafts or restrict fluid flow.
-
High Structural & Shear Resistance: Machined directly from solid, defect-free metal bar stock, Hetai cross-hole sleeves absorb heavy perpendicular shear forces and dynamic shock loads without deforming.
-
Custom Geometric Profiles: We can add outer hex flats, spanner slots, outer knurling, or retaining ring grooves to facilitate quick installation, hand grip, or flush housing seating.
Primary Application Sectors
Hetai’s custom cross-hole threaded sleeves perform across diverse mechanical and structural environments:
-
Furniture & Architectural Framing: Structural cross-dowel barrel nuts for high-strength timber, steel framing, and modular display racks.
-
Hydraulics & Fluid Power Systems: Manifold connector sleeves, fluid distribution collars, and hydraulic cylinder rod guide bushings.
-
Automotive & Commercial Transportation: Steering linkage sleeves, brake pedal pivot bushings, chassis cross-member connectors, and shift linkage stops.
-
Industrial Machinery & Automation: Linear motion guide locks, pneumatic cylinder rod ends, rotary joint retainers, and conveyor roller shafts.
-
Aerospace & Defense: Control rod linkages, structural bracket sleeves, and cable tensioner inserts requiring high strength-to-weight ratios.
Hetai Quality Assurance & Inspection Standards
Quality is integrated into every stage of production at Hetai to guarantee 100% compliance with your engineering requirements:
-
100% Raw Material Verification: Chemical composition and mechanical properties are verified via spectrographic analysis and backed by Mill Test Certificates (MTC).
-
Comprehensive Thread & Hole Inspection: Internal and cross-hole threads are verified using Go/No-Go plug gauges, optical profile projectors, and pitch micrometers.
-
CMM Positional Accuracy Verification: Coordinate Measuring Machines (CMM) inspect critical parameters including hole-to-hole center distances, perpendicularity, concentricity, and overall length.
-
Surface Finish Testing: Controlled surface roughness down to Ra 0.4 µm guarantees smooth shaft insertion and dependable fluid sealing.
Partner with Hetai for Your Custom Machining Needs
Whether you require a low-volume prototype batch for design validation or high-volume production schedules with strict JIT delivery, Hetai delivers uncompromised quality, competitive factory-direct pricing, and expert engineering support.
Send us your 2D drawings (PDF) or 3D CAD models (STEP/IGES) today for a quick manufacturability review and competitive quote!
