Custom Hexagonal Knurled Stepped Nuts by Hetai: Dual-Drive Precision & High-Torque Fastening

When specialized industrial machinery and mechanical assemblies require versatile drive options, precise axial positioning, and heavy-duty clamping power, standard off-the-shelf fasteners often fall short. At Hetai, we specialize in manufacturing high-precision Custom Hexagonal Knurled Stepped Nuts, engineered to deliver exceptional functional integration, quick manual adjustability, and reliable torque transmission in demanding operational environments.

Leveraging multi-axis CNC turning centers, automatic Swiss lathes, and specialized knurling tools, Hetai transforms high-grade metals into custom multi-functional nuts designed precisely to your CAD models and technical specifications.

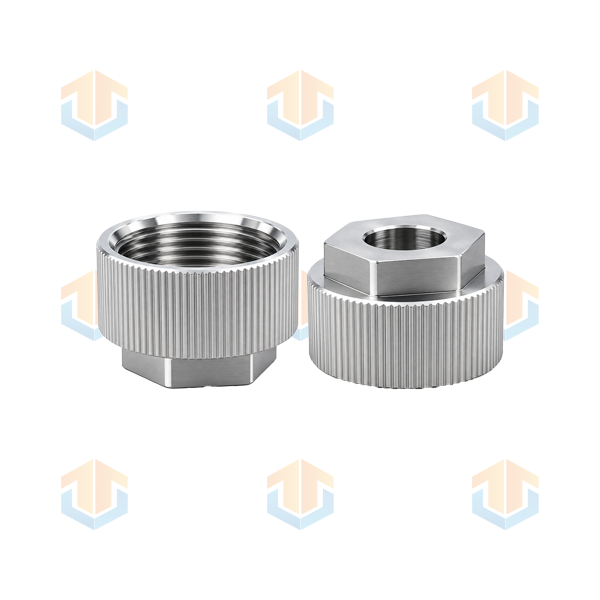

What is a Hexagonal Knurled Stepped Nut?

A hexagonal knurled stepped nut is a hybrid internal-threaded fastener that integrates three distinct geometric features into a single component:

1. Hexagonal Section: Allows high-torque wrenching using standard open-end, box, or socket tools for final rigid tensioning.

2. Knurled Surface Section: Features a diamond or straight knurled pattern around a cylindrical section, offering an anti-slip grip for fast, tool-free manual pre-tightening or fine adjustment.

3. Stepped Pilot Collar (Shoulder): Extends from the base to act as a precision locating pilot, seating into housing bores to ensure accurate concentricity, absorb radial loads, or function as a built-in shoulder spacer.

By combining hand-operability, high-torque wrenching, and self-locating alignment, this nut streamlines assembly workflows and reduces total component counts.

Technical Specifications & Customization Capabilities

At Hetai, customization extends across all dimensional, metallurgical, and functional features to match your exact application requirements:

Technical Advantages of Hetai Custom Stepped Nuts

• Dual Operational Efficiency: Technicians can rapidly spin the nut into position by hand using the knurled grip, then apply final high-torque tightening with a standard hex wrench, drastically reducing assembly line cycle times.

• Micron-Level Step Concentricity: Machining the internal thread, stepped pilot shoulder, and outer geometry in a single setup ensures tight concentricity (up to ±0.005 mm), preventing thread binding and dynamic misalignment.

• Integrated Locating & Spacing: The stepped pilot shoulder centers the nut precisely within mating panel cutouts or bearing bores, eliminating the need for separate washers or alignment bushings.

• High Stripping & Shear Resistance: Machined from solid, high-tensile bar stock (rather than stamped or powder-sintered metals), Hetai stepped nuts offer maximum thread shear strength under high axial tension.

Primary Application Sectors

Hetai’s custom hexagonal knurled stepped nuts perform across diverse high-stress and precision environments:

• Industrial Jig & Fixture Tooling: Quick-adjust clamping knobs, modular workholding fixtures, and locator block locks.

• Test & Measurement Equipment: Fine-adjustment calibration screws, optical stage mounts, and lab instrument tensioners.

• Automotive & Commercial Vehicles: Battery terminal mounts, panel alignment brackets, and adjustable linkage connections.

• Electrical & Control Enclosures: Busbar standoffs, grounding studs, and panel-pass-through locking nuts.

• Heavy Machinery & Automation: Tensioning control rods, conveyor belt adjustments, and pneumatic cylinder mounts.

Hetai Quality Assurance & Material Verification

Quality is integrated into every stage of production at Hetai to guarantee 100% compliance with your engineering requirements:

1. 100% Material Traceability: Raw materials are verified via spectrographic chemical analysis and backed by Mill Test Certificates (MTC).

2. Precision Thread Inspection: Internal threads are verified using Go/No-Go plug gauges, optical profile projectors, and pitch micrometers.

3. CMM & Runout Verification: Coordinate Measuring Machines inspect step shoulder perpendicularity, overall length, and concentricity.

4. Coating & Surface Integrity: Salt spray testing chambers (ASTM B117) and coating thickness gauges guarantee long-term corrosion resistance.

Partner with Hetai for Your Custom Fastener Projects

Whether you require a low-volume prototype run for design validation or high-volume production schedules with strict JIT delivery, Hetai delivers uncompromised quality, competitive factory-direct pricing, and expert engineering support.

Send us your technical drawings (PDF/STEP/IGES) today for a prompt manufacturability review and competitive quote!
