Product Overview

HETAI Manufacturing specializes in the production of Custom Stepped Round Slotted Lock Nuts, precision-machined locking components designed for applications requiring secure threaded positioning, reliable locking, and accurate axial adjustment.

Featuring a round outer profile, stepped body, internal threads, and multiple radial slots, these lock nuts provide a practical solution for assemblies where conventional hex nuts are unsuitable or where a specialized locking and adjustment method is required. The slots allow the nut to be tightened or loosened using a compatible hook wrench, pin wrench, or other dedicated tooling.

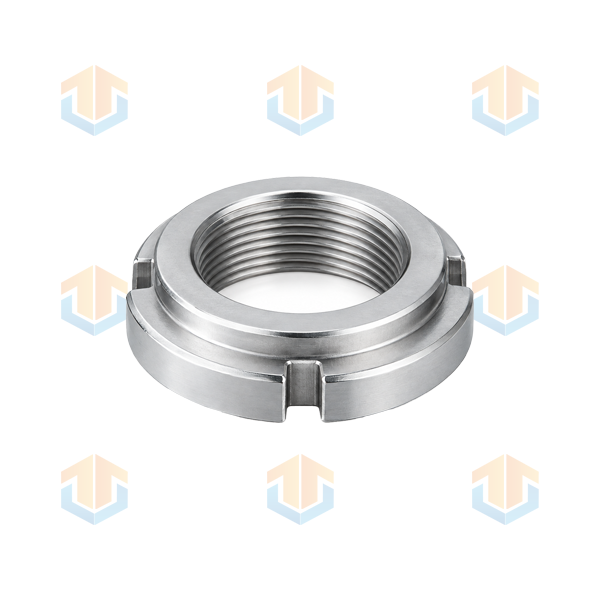

Stepped Round Slotted Lock Nuts

The stepped configuration can also provide additional positioning and clearance within compact mechanical assemblies.

Key Features

Stepped Round Design – The multi-level profile provides positioning, clearance, and functional flexibility.
Radial Locking Slots – Multiple external slots allow engagement with specialized tightening tools.
Internal Threading – Precision-machined internal threads provide secure engagement with mating shafts or threaded components.
Compact Profile – The round design is suitable for applications where a conventional hexagonal nut may not be appropriate.
Custom Dimensions – Outer diameter, inner diameter, thickness, step dimensions, and slot configuration can be customized.
Precision CNC Machining – Manufactured using CNC turning and secondary machining processes for consistent dimensional accuracy.
Custom Materials & Finishes – Available in stainless steel, carbon steel, alloy steel, aluminum, brass, and other specified materials.

Custom Specifications

HETAI can manufacture Custom Stepped Round Slotted Lock Nuts according to customer drawings, samples, or technical specifications.

Typical customizable dimensions include:

Internal thread diameter and pitch
Overall outside diameter
Overall thickness
Step diameter
Step height
Number of slots
Slot width and depth
Slot position and spacing
Chamfers and radii
Thread tolerance
Material
Surface treatment
Dimensional tolerances

The slot configuration can be adapted to suit different installation tools and application requirements.

Materials

Depending on the operating environment and mechanical requirements, HETAI can manufacture these custom lock nuts from:

Stainless Steel
Carbon Steel
Alloy Steel
Brass
Aluminum
Other customer-specified materials

Available surface treatments may include zinc plating, nickel plating, chrome plating, black oxide, passivation, anodizing, Dacromet, and other customized finishes.

Manufacturing Process

Stepped slotted lock nuts typically require several precision machining operations to achieve accurate threads, steps, slots, and overall dimensions.

HETAI’s manufacturing process may include:

Material Preparation → CNC Turning → Internal Thread Machining → Step Machining → Slot Milling → Deburring → Surface Treatment → Dimensional Inspection → Final Quality Inspection → Packaging

For high-volume orders, HETAI can optimize machining and tooling processes to improve production efficiency while maintaining consistent quality.

Applications

Custom Stepped Round Slotted Lock Nuts can be used in a wide range of mechanical and industrial assemblies, including:

Precision machinery
Shafts and rotating assemblies
Bearing assemblies
Automation equipment
Industrial equipment
Motors and gearboxes
Machine tools
Automotive components
Mechanical positioning systems
Customized engineering assemblies

They are particularly suitable for applications requiring axial positioning, component retention, adjustment, or secure threaded locking.

Quality Control

HETAI maintains strict quality control throughout the manufacturing process. Critical dimensions can be inspected according to customer drawings and specified tolerances.

Inspection items may include:

Internal thread dimensions
Thread pitch and tolerance
Outside diameter
Step dimensions
Overall thickness
Slot width and depth
Concentricity
Flatness
Surface finish
Material verification
Coating appearance and thickness

Samples can be produced and inspected before mass production to confirm the design and manufacturing process.

HETAI Custom Fastener Manufacturing

HETAI Manufacturing specializes in custom non-standard fasteners and precision-machined metal components, including custom nuts, bolts, screws, bushings, pins, and other specialized hardware.

With CNC turning, milling, drilling, tapping, thread processing, and secondary machining capabilities, HETAI can manufacture complex locking components according to customer drawings or physical samples.

Our typical workflow includes:

Drawing Confirmation → Process Development → Material & Tooling Preparation → Sample Production → Customer Approval → Mass Production → Surface Treatment → Final Inspection → Packaging & Shipment
