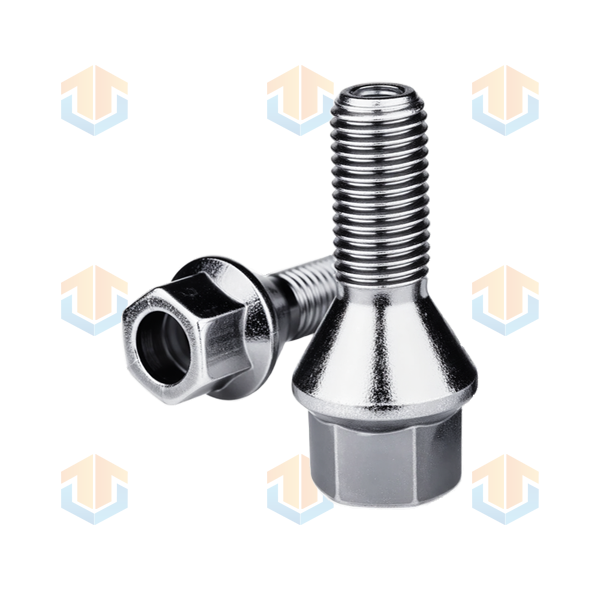

Custom Hexagonal Countersunk Bolts by Hetai: Flush-Surface Precision & High-Tensile Fastening
In high-performance mechanical assemblies, aerospace structures, and modern industrial machinery, protruding bolt heads can compromise aerodynamics, create safety hazards, or cause clearance issues with moving parts. At Hetai, we specialize in manufacturing Custom Hexagonal Countersunk Bolts (also known as custom hex socket flat head cap screws), engineered to sit completely flush with the mating surface while providing exceptional clamping force, high torque capability, and precise alignment.
By combining advanced multi-station cold-forging, precision multi-axis CNC machining, and high-precision thread rolling, Hetai transforms premium raw materials into customized fasteners that meet your exact CAD specifications and international standards (DIN 7991, ISO 10642, ANSI/ASME B18.3).
What is a Hexagonal Countersunk Bolt?
A hexagonal countersunk bolt features a cone-shaped head with a flat top surface and an internal hexagonal drive socket (or external hex drive option). The underside of the head is angled—typically at 80°, 90°, or 100°—to seat perfectly into a pre-countersunk hole.
This geometric configuration offers key functional advantages:
-
Flush Surface Profile: Eliminates external protrusions for a smooth, snag-free finish, essential for aerodynamic surfaces, sliding mechanisms, and tight spatial enclosures.
-
High-Torque Transmission: The internal hexagonal drive allows deep wrench engagement, enabling high installation torque with minimal risk of tool cam-out or head stripping.
-
Self-Centering Alignment: The conical head geometry naturally centers the bolt within the countersunk hole during tightening, ensuring accurate structural positioning.
Key Technical Specifications & Customization Capabilities
At Hetai, customization extends across every aspect of geometry, drive style, material selection, and surface finishing:
| Parameter | Hetai Customization Capabilities |
| Manufacturing Methods | Multi-Station Cold Heading, Precision CNC Machining, Swiss Turning, Thread Rolling |
| Drive Types | Internal Hex Socket (Allen Drive), External Hex Head, Hex Socket with Pin (Security/Tamper-Proof) |
| Countersunk Angles | Standard 90° (Metric), 82° / 100° (Imperial), or custom angles tailored to your countersink tooling |
| Material Options |
Carbon & Alloy Steel: 35#, 45#, 40Cr, 35CrMo, 42CrMo, SCM435 Stainless Steel: SUS304 (A2), SUS316 (A4), SUS410, 17-4PH / SUS630 Non-Ferrous & Exotic Alloys: Titanium Alloys (Grade 2, Grade 5 / Ti-6Al-4V), Brass, 7075-T6 Aluminum |
| Strength Property Classes |
Metric Grades: 8.8, 10.9, 12.9 Imperial Standards: SAE J429 Grade 5, Grade 8 |
| Dimensional Limits |
Thread Diameter: M3 to M30 / #4 to 1-1/4″ Overall Length: 6 mm to 300 mm |
| Thread Formats | Full Thread / Partial Thread; Coarse (UNC), Fine (UNF), Metric pitch; Custom lead angles |
| Surface Treatments | Black Oxide, Zinc Plating (Clear/Yellow/Black), Hot-Dip Galvanizing, Dacromet, Geomet, Passivation, Anodizing (Aluminum/Titanium), Nylon Thread-Locking Patch |
Technical Advantages of Hetai Custom Countersunk Bolts
-
Precise Head-to-Shank Concentricity: By utilizing multi-station forging dies and precision CNC turning, Hetai maintains strict concentricity between the conical head and the threaded shank, preventing uneven seating stress and premature bolt failure.
-
Deep Wrench Socket Engagement: Precision-formed internal hex sockets provide maximum surface contact with driver bits, allowing effortless tightening and loosening even after exposure to high dynamic loads.
-
Superior Fatigue & Tensile Strength: Rolled threads (rather than cut threads) preserve continuous material grain flow, maximizing dynamic fatigue life and tensile load resistance under severe vibration.
-
Corrosion Resistance for Harsh Environments: Available in marine-grade 316 stainless steel or coated with advanced anti-corrosion finishes capable of enduring 1,000+ hours of salt spray testing (ASTM B117).
Primary Application Sectors
Hetai’s custom hexagonal countersunk bolts are widely deployed in applications requiring smooth surfaces and strong joint integrity:
-
Aerospace & Defense: Aircraft skin panel fastening, internal framing, and control surface mounts requiring low aerodynamic drag.
-
Automotive & Motorsport: Brake rotor mounting bolts, chassis skid plate attachments, transmission covers, and interior trim structures.
-
Heavy Machinery & Machine Tools: Slide-way guide rails, recessed casing joints, conveyor belt guides, and flush machine covers.
-
Robotics & Automation: End-effector assembly plates, linear actuator mounts, and robotic arm joints operating in tight clearances.
-
Consumer Goods & Electronics: Commercial gym equipment frames, architectural glass hardware, and outdoor enclosure panels.
Hetai Quality Assurance & Material Verification
Quality control is embedded into every stage of production at Hetai to guarantee 100% compliance with your engineering specifications:
-
100% Raw Material Traceability: Chemical composition and mechanical properties are verified via spectrographic analysis and backed by Mill Test Certificates (MTC).
-
Optical & CMM Inspection: Profile projectors and 3D Coordinate Measuring Machines verify countersink angles, head heights, drive depths, and thread pitch.
-
Mechanical Property Testing: Tensile strength, proof load, hardness (Rockwell/Vickers), and torque testing ensure compliance with Grade 10.9 / 12.9 requirements.
-
Coating & Surface Verification: Digital coating thickness gauges and salt spray testing chambers ensure long-term corrosion protection.
Partner with Hetai for Your Custom Fastener Projects
Whether you require prototype samples for design validation or high-volume production runs with strict JIT delivery, Hetai delivers uncompromised quality, competitive factory-direct pricing, and expert engineering support.
Send us your technical drawings (PDF/STEP) or project specifications today for a prompt manufacturability review and competitive quote!
