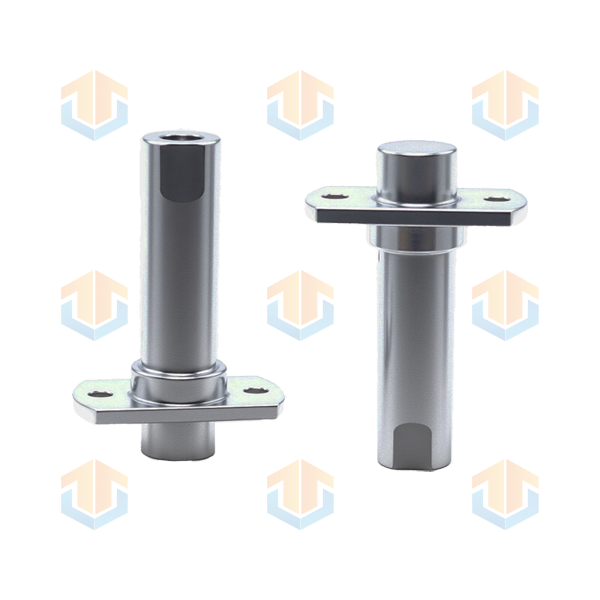

Custom Precision Long Locating Dowel Pins by Hetai: High-Accuracy Positioning for Critical Assemblies
When severe dynamic loads, deep structural joints, or multi-layer mechanical assemblies demand exact alignment, standard short dowel pins fail to provide the necessary engagement and stability. At Hetai, we specialize in manufacturing Custom Precision Long Locating Dowel Pins (also known as alignment pins, guide pins, or long cylindrical pins), engineered to deliver sub-micron alignment accuracy, extreme shear strength, and long-term wear resistance.
Leveraging advanced centerless grinding, precision CNC turning, and tight-tolerance heat treatment, Hetai transforms high-grade metals into customized long locating pins tailored to your exact CAD models and assembly requirements.
What is a Long Locating Dowel Pin?
A long locating dowel pin is an extended cylindrical fastener used to align two or more components with extreme precision before final clamping. Unlike standard short dowels, extended-length pins provide deep engagement across thick mating plates, multi-stack housings, or deep-cavity tooling.
They perform several crucial structural functions:
-
Precise Component Alignment: Eliminates lateral play and maintains strict positional tolerance between mating parts.
-
Shear Stress Absorption: Handles heavy shear forces, protecting primary bolts and fasteners from side-load failure.
-
Smooth Blind Guidance: Serves as a guide rod during assembly, sliding smoothly into deep holes without binding or tilting.
Key Technical Specifications & Customization Options
At Hetai, we offer full dimensional, geometric, and material customization to match your specific engineering drawings:
| Parameter | Hetai Customization Capabilities |
| Machining Capabilities | Precision CNC Turning, Swiss Lathe Machining, Centerless Grinding, Surface Grinding, Lapping |
| Diameter Range | Ø1.5 mm to Ø50 mm (Precision ground to custom tolerances) |
| Length Range | 20 mm to 600+ mm (Custom long-aspect ratios available) |
| Dimensional Tolerances | Diameter tolerance up to ±0.002 mm (2 microns); Straightness/Cylindricity up to 0.005 mm |
| Material Options |
Bearing/Tool Steel: GCr15 / 52100, D2, SKD11, A2 Stainless Steel: SUS304, SUS316, SUS420, 17-4PH / SUS630 Carbon & Alloy Steel: 45#, 40Cr, 42CrMo Brass & Aluminum: C36000, 7075-T6 |
| Hardness Options | Through-hardened or Case-hardened up to HRC 58–62 for high wear resistance |
| End Style Geometries | Chamfered ends, Rounded/Bullet nose (for easy insertion), Flat ground, Tapered lead-in |
| Custom Features | Internal/External threads (Pull dowel style), Air/Vent flats (relief grooves), Radial oil grooves, Retaining ring slots |
| Surface Treatments | Hard Chrome Plating, Black Oxide, Passivation, Titanium Nitride (TiN), DLC (Diamond-Like Carbon), Electropolishing |
Technical Advantages of Hetai Custom Long Dowel Pins
-
Exceptional Straightness & Surface Finish: Long pins are prone to bending during heat treatment or grinding. Hetai uses specialized precision centerless grinding and straightening processes to guarantee strict straightness and surface roughness down to Ra 0.2 µm, ensuring smooth, bind-free insertion into deep boreholes.
-
Integrated Air-Relief & Pull Features: Deep blind holes often build up hydraulic or pneumatic pressure during pin insertion. Hetai can machine longitudinal flat relief grooves or internal pull-out threads, enabling easy installation, pressure release, and effortless disassembly during maintenance.
-
High Core Toughness & Wear Resistance: Our customized heat-treatment profiles ensure a hard, wear-resistant outer surface (to prevent galling and scuffing) while maintaining a tough core capable of absorbing extreme dynamic shock loads.
-
Custom Lead-In Chamfers & Bullet Noses: Custom-designed entry profiles guide mating components into place automatically, making manual or robotic automated assembly significantly faster and safer.
Primary Application Sectors
Hetai’s custom long locating pins are widely used across industries requiring tight geometric tolerances and high repeatability:
-
Stamping Dies & Injection Molding: Guiding deep mold plates, core slides, and multi-cavity die bases.
-
Automotive & Powertrain Manufacturing: Engine block alignment, transmission casing locator pins, and chassis assembly fixtures.
-
Industrial Automation & Robotics: High-precision robotic arm joints, linear guide alignment, and automated indexing turntables.
-
Aerospace & Defense: Structural airframe alignment, landing gear assembly fixtures, and flight control linkages.
-
Heavy Machinery & Gearboxes: Multi-stage gearbox alignment and heavy-duty flange positioning.
Hetai Quality Control & Precision Assurance
Manufacturing high-aspect-ratio long pins requires uncompromised quality monitoring at every step:
-
100% Raw Material Inspection: Chemical composition verified via spectrographic testing with full material traceability (MTC).
-
Optical & Laser Micrometer Verification: Non-contact optical sorting and laser micrometers continuously monitor diameter, roundness, and taper along the entire length of the pin.
-
CMM & Runout Testing: Precision dial indicators and Coordinate Measuring Machines verify total indicator reading (TIR), straightness, and perpendicularity.
-
Hardness & Microstructure Testing: Hardness testing (Rockwell/Vickers) guarantees specified heat treatment depth and core strength.
Partner with Hetai for Your Long Pin Requirements
Whether you need prototype quantities for custom fixture building or high-volume production runs with scheduled delivery, Hetai provides end-to-end manufacturing expertise, competitive factory pricing, and strict adherence to technical specifications.
Contact our engineering team today with your CAD drawings or technical specs for a rapid quote and manufacturing feasibility review!
