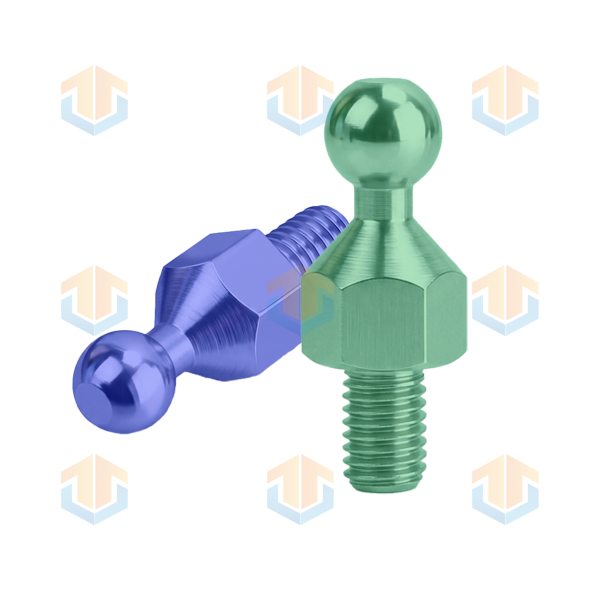

This innovative component is engineered to solve complex assembly challenges where space is constrained and off-angle access is required. It simultaneously addresses the growing demand for visually distinct, branded, or color-coded hardware in aerospace, automotive, high-end electronics, and medical device industries. By combining the versatile geometry of a ball-point drive, the structural integrity of a hexagonal slant head, and advanced color anodization technology, Hetai offers a component that truly bridges the gap between raw engineering power and sophisticated product design.
Engineering Excellence Meets Aesthetic Innovation
Unparalleled Geometry: The Engineering Core
The primary innovation of the Hetai Bolt lies in its uniquely engineered head structure. Standard hex bolts require perfect coaxial alignment between the drive tool and the bolt axis. In tightly packed modern machinery, this is often impossible.
1. The Ball Head Drive System
The “Ball Head” feature (also known as a ball-point hex or spherical hex drive) is the key to solving this accessibility crisis. Unlike a standard flat hex socket, the driver end of the Hetai Bolt is precisely machined into a truncated sphere with hexagonal facets.
This spherical geometry allows the corresponding Hex (Allen) key to engage and operate efficiently at a slant angle of up to 25 degrees (and potentially up to 30 degrees for specific custom models) off the bolt’s centerline. This pivot capability offers engineers unprecedented freedom in assembly sequencing and component layout, as the drive tool no longer needs to approach the fastener from a direct, straight-on perspective.
2. The Hexagonal Slant (Flange) Design
Surrounding the central ball head drive is the “Slant Bolt” body, designed with a hexagonal profile that transitions into a conical or slanted bearing surface. This geometry serves multiple critical functions:
-
Integrated Load Distribution: The slanted hexagonal head acts similarly to an integrated flange, distributing clamping forces over a wider surface area. This reduces the localized stress on the fastened material, preventing surface damage and reducing the risk of pulling through, particularly when fastening softer materials like aluminum, carbon fiber, or engineering plastics.
-
Self-Centering Capability: The conical slant underhead facilitates automatic self-centering when tightening into countersunk holes, ensuring uniform stress distribution and preventing eccentric loading that can lead to fatigue failure.
-
Low-Profile and Streamlined: The slanted design provides a more streamlined, low-profile finish compared to standard cap screws, reducing aerodynamic drag or snagging risks in moving parts, which is crucial for automotive and robotics applications.
Aesthetic and Functional Innovation: Color Anodization
What sets the Hetai Colored Ball Head Hexagonal Slant Bolt apart from traditional, monochromatic hardware is its vibrant, durable colored finish. This is achieved not through paint or plating, but through advanced Type II or Type III Electrolytic Color Anodization.
1. Beyond Appearance: Functional Color-Coding
While the visual impact is immediate, color serves a vital functional purpose in complex manufacturing environments:
-
Assembly Error Prevention: Different colors can signify different bolt sizes (e.g., M6 in blue, M8 in red, M10 in gold). This is a simple, effective form of Poka-Yoke (mistake-proofing) on the assembly line, ensuring operators always select the correct fastener.
-
Maintenance Optimization: Colors can designate specific service protocols. For example, bolts requiring specific torque checks during maintenance can be colored differently, streamlining inspection processes.
-
Counterfeit Protection and Branding: Unique color profiles help protect against counterfeit parts and allow manufacturers to integrate their corporate colors directly into their products, enhancing perceived quality and brand identity.
2. High Durability Finish
Hetai’s anodization process creates a ceramic-hard oxide layer that becomes an integral part of the bolt’s material structure (typically lightweight, high-strength aluminum alloys like 7075 or titanium alloys like Ti-6Al-4V). This layer is:
-
Fade-Resistant: The organic dyes used are sealed deep within the oxide pores, offering excellent resistance to UV light.
-
Wear and Corrosion Resistant: The anodized layer provides a significantly harder surface than the base metal, offering superior protection against scratches and chemical corrosion, far outlasting paint.
Material Specifications and Reliability
At its core, a fastener is a structural component. Hetai employs only aerospace-grade and high-strength industrial materials for the Colored Ball Head Bolt series.
-
Material Options: While available in standard stainless steel (304/316) for specific applications, the Colored series typically utilizes Grade 5 Titanium (Ti-6Al-4V) or Aerospace-Grade 7075-T6 Aluminum.
-
Strength-to-Weight Ratio: The titanium variant offers a tensile strength comparable to high-strength steel (approx. 900-1100 MPa) at nearly half the weight, while the anodized aluminum version offers a superior strength-to-weight ratio for weight-critical applications.
-
Quality Assurance: Every batch of Hetai bolts undergoes rigorous testing, including spectral analysis for material composition, hardness testing, tensile strength verification, and dimensional inspection using high-resolution optical systems.
Primary Applications
The unique properties of the Hetai Colored Ball Head Hexagonal Slant Bolt make it ideal for numerous high-value sectors:
-
Automotive Performance and Tuning: Custom engines, suspension systems, and interiors where off-angle access is common, and colored accents are highly valued.
-
Aerospace and Defense: Space-constrained avionic assemblies and satellite structures requiring high strength-to-weight ratios and off-axis drive capabilities.
-
High-End Electronics and Robotics: Fastening circuit boards, sensors, and chassis components in tight robotic joints and compact consumer electronic casings.
-
Medical Devices: Complex medical equipment, surgical robotics, and diagnostic machinery where precision and non-standard tool access are critical.
Conclusion
The Colored Ball Head Hexagonal Slant Bolt by Hetai is more than just a fastener; it is a sophisticated engineering solution that understands the realities of modern design. By solving the age-old problem of hard-to-reach assembly points while offering high structural performance and a durable, aesthetically flexible colored finish, Hetai provides manufacturers with a tool to improve efficiency, ensure quality, and enhance their product’s visual appeal. Choose Hetai, and secure your products with the perfect blend of innovation and reliability.
